Bernina 9mm ZigZag Stitch Plate For 8 Series Machines
Pickup available at NEBRASKA QUILT COMPANY FREMONT
Usually ready in 24 hours
Description
Technical Specification & Reference Guide

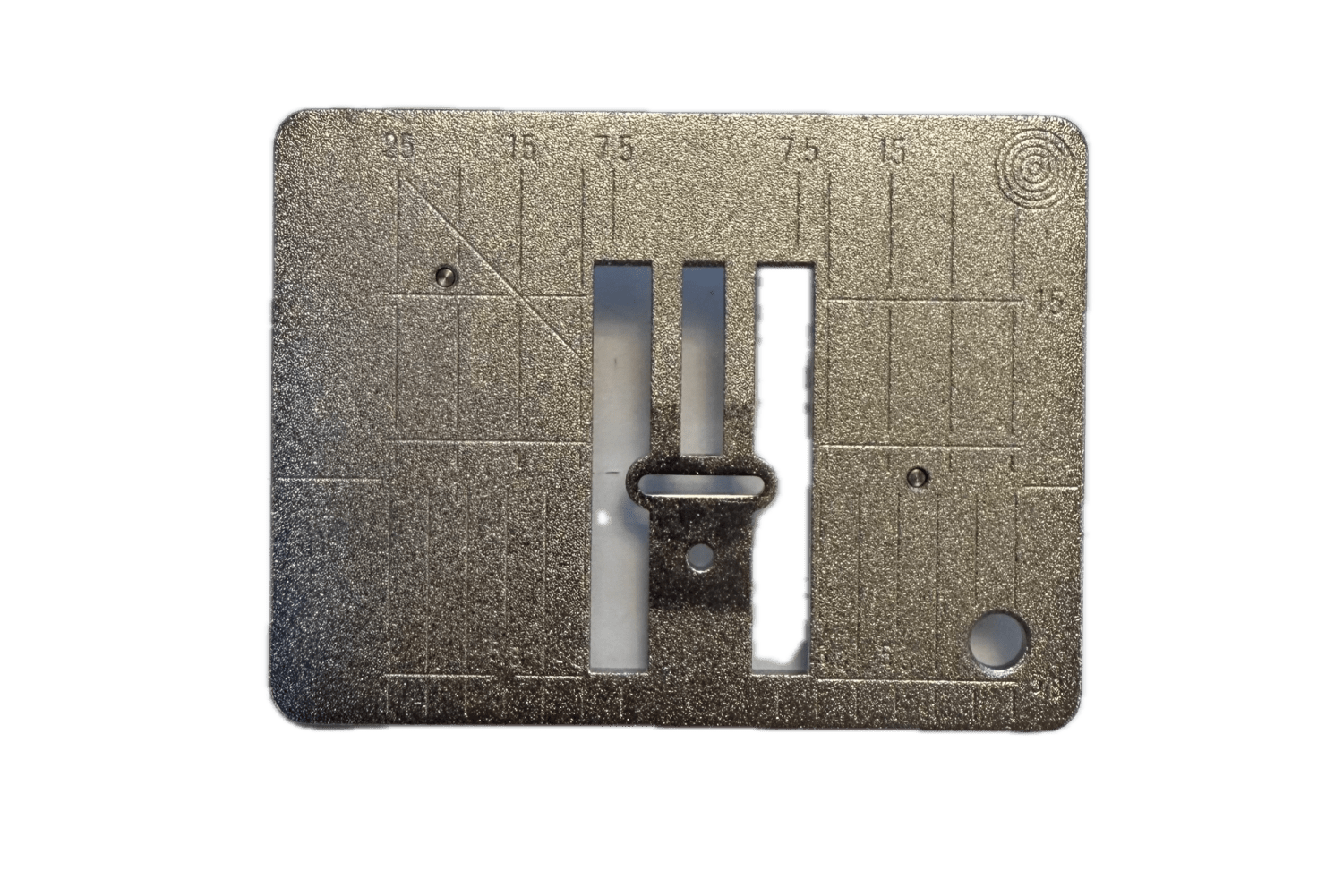

Component: Bernina 8 Series Standard 9mm Zigzag Stitch Plate (Part #032100.70.00)
Product Description
The 032100.70.00 is a genuine OEM high-clearance needle throat plate engineered exclusively for BERNINA 8 Series dual-feed sewing and embroidery systems. This critical component features a precision-milled, ultra-wide 9mm needle slot configured to accommodate maximum lateral needle displacement. It serves as the baseline foundation for everyday garment construction, wide utility stitching, decorative pattern manipulation, and automated omnidirectional embroidery. Built from high-grade, anti-friction hardened steel alloy, the plate provides a perfectly flat, low-resistance matrix that ensures uniform fabric contact across the high-speed feed dog assembly, preserving optimal stitch geometry during intense lateral needle swings without fabric flag deformation.
Overview Section
- OEM Part Number: 032100.70.00 (Alternative format: 0321007000)
- Component Type: Standard Zigzag / Embroidery Stitch Plate (9mm Width)
- Maximum Calibrated Feed: 9.0 mm System Maximum
- Visual Identifier: Integrated physical horizontal metric/inch alignment guidelines etched onto the plate face
Installation and Calibration Mechanics
Utilizing BERNINA’s advanced toolless mechanism, swapping the plate integrates with the machine’s central sensor logic to reset safety clearance thresholds.
- Toolless Disengagement: Fully raise the needle and presser foot. Press down firmly on the designated rear-right corner indicator spot until the under-chassis spring retention latch unlocks. Lift the back edge up and slide the plate out toward the rear.
- Chassis Optimization: Clean the exposed area surrounding the dual-feed tracks and thread cutter mechanism using a soft lint brush. Ensure the optical sensors inside the chassis well are entirely clear of dense microfiber buildup.
- Firmware Verification: Slide the front alignment rails of the 032100.70.00 into the hook system slots and click the rear plate flush. Computerized 8 Series units utilize an auto-detect sensor or require manual confirmation via the touchscreen “Stitch Plate Selection Screen.” Activating the 9mm profile unlocks unrestricted side-to-side decorative and utility stitch paths safely.
Cross-Platform System Compatibility
This precision-machined component is manufactured to original factory specifications and is strictly compatible with the large-chassis BERNINA 8 Series hook engineering framework:
Full System Integration Compatibility (Sewing & Embroidery):
- BERNINA 8 Series Luxury Frameworks: 820, 820 Sterling Edition
- BERNINA 8 Series Master Systems: 830, 830 Embroidery System
- BERNINA 8 Series Flagship Line: 880, 880 Plus
Authority Troubleshooting Note: When transitioning an 8 Series machine back to the 9mm standard plate after a prolonged run using a specialized 0mm Straight-Stitch plate, look out for unexpected needle tracking errors or upper thread fraying. The machine's firmware must register the 9mm plate profile change to recalibrate the stitch-width limiter. Failure to update the onboard interface can cause the embroidery module to deploy outdated boundary maps, risking critical needle deflection strikes against the inner margins of the 9mm aperture at extreme high-speed cycles.
