Product Overview
Unlock the absolute potential of your premium sewing ecosystem with the Baby Lock Guideline Marker Foot, engineered exclusively for the revolutionary Baby Lock Radiance. When you are working on high-end quilts, thick garments, or complex multi-layered textiles, traditional presser feet can cause fabric displacement and distort your optical sewing lines.
This specialized, high-performance accessory acts as a physical stabilizer for your fabric, ensuring that advanced machine capabilities like IQ Live Stitch® laser guidelines remain perfectly flat, crystal clear, and completely accurate from the first stitch to the last.
Key Features & Benefits

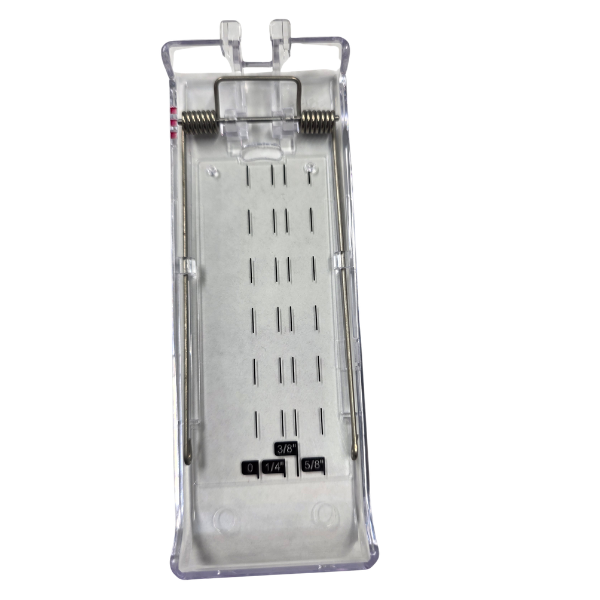

- Advanced Fabric Stability: Features an integrated internal spring system that maintains constant, uniform downward contact with your fabric. This eliminates fabric shifting and flagging, keeping multi-layer projects perfectly under control.
- Laser-Optimized Clarity: The clear plastic construction ensures that projected guideline matrices and laser crosshairs cast directly through the foot onto your material without refraction, scattering, or glare. (Note: Be sure to remove the protective film layer before your first use for full, unobstructed viewing.)
- Enhanced Visual Control: Offers an optimized wide needle opening layout that accommodates left, center, and right needle adjustments while giving you an uncompromised line-of-sight to the exact needle drop point.
- Rigid Ankle Coupling: Built with a custom heavy-duty mounting bracket that couples directly onto your machine's primary ankle assembly, providing maximum stability compared to standard generic snap-on bars.

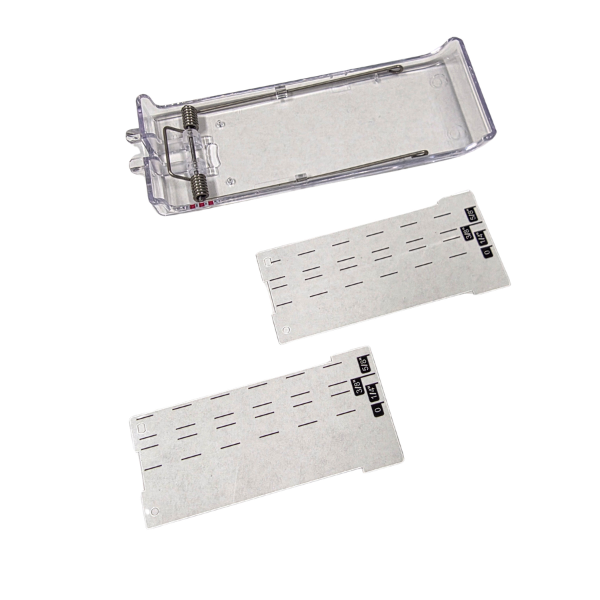

Integrated Template & Seam Allowance System
Take the guesswork out of complex topstitching, garment piecing, and precision quilting. The Guideline Marker Foot features precision-molded alignment notches designed to perfectly seat attachable physical templates.
Once docked, this hybrid system offers clear, incrementally marked seam grids for 1/4-inch, 3/8-inch, and 5/8-inch allowances. These markings are meticulously calibrated to align symmetrically with both Left Needle Position (LNP) and Center Needle Position (CNP) configurations, giving you flawless lines regardless of your chosen stitch parameters.
Installation & Removal Guide
- Prep Your Workspace: Turn off your machine or activate the safety lock screen. Raise your needle bar to its highest physical position and lift the manual or automatic presser foot lever.
- Engage the Spring: Hold the foot firmly, align the attachment mechanism with the machine's ankle pin, and push it directly onto the pin until it securely clicks and locks into position.
- Quick-Release Removal: When you are ready to swap accessories, simply press the physical release lever located on the rear of the sewing machine's ankle assembly to safely release the spring tension and slide the foot away smoothly.
Technical Specifications
| Attribute | Specification Details |
|---|---|
| Product Name | Baby Lock Guideline Foot / Guideline Marker Foot |
| Primary Compatibility | Baby Lock Radiance (BLRA) Series |
| Core Technology Sync | IQ Live Stitch® Projection Matrix & Multi-Angle Laser Guides |
| Material Composition | High-grade clear optical polycarbonate with steel ankle bracket |
| Seam Benchmarks | Symmetrical 1/4", 3/8", and 5/8" physical template configurations |
| Primary Applications | Thick quilting layers, bulky seam intersections, garment piecing, and edge topstitching |
| Availability | Available directly through our authorized team for registered Radiance owners |
To master your new accessory and maximize projection contrast on highly textured fabrics, consult our specialized in-house support guidelines.
