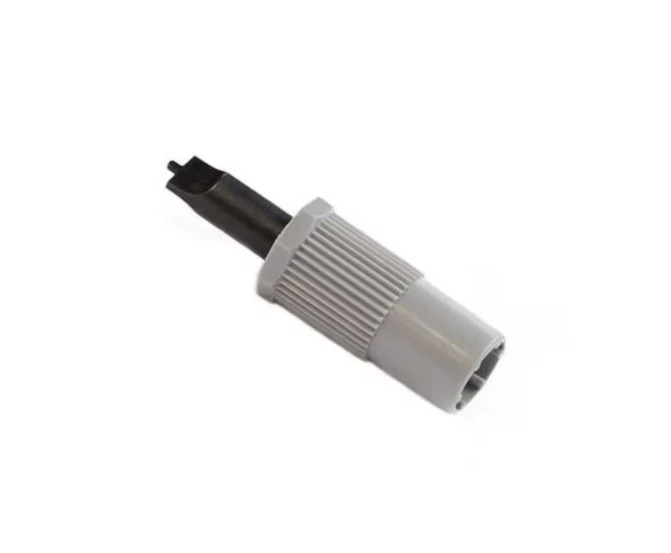

Bernina Needle Clamp Screwdriver with Integrated Bulb Change
Pickup available at NEBRASKA QUILT COMPANY FREMONT
Usually ready in 24 hours
Description
Technical Specification & Reference Guide
Component: Needle Clamp Screwdriver with Integrated Bulb Changer (Part #001308.73.00)
Product Description
The 001308.73.00 is a genuine OEM, dual-purpose service tool precision-engineered for legacy and specialized mechanical sewing systems. Its structural configuration solves two high-frequency maintenance challenges: providing calibrated torque leverage for tightening standard flat-slot needle clamp screws, and offering an insulated, open-ended socket handle optimized to firmly grasp and turn small incandescent internal lighting elements. By combining these functions into a single, pocket-sized technician’s tool, it prevents operators from bending needle bars via oversized screwdrivers or shattering glass bulb housings during manual maintenance cycles.
Overview Section
- OEM Part Number: 001308.73.00 (Cross-referenced alternate: 0013087301)
- Component Type: Combination Multi-Tool (Flat Slot Driver + Tubular Bulb Changer)
- Tool Profiling: Precision-ground flat blade tip with a cylindrical composite grip collar
- Material Composition: Tempered tool steel shaft with an impact-resistant, non-conductive polymer shroud
- Standard MSRP Range: $6.99 to $12.75 USD
Application and Mechanical Practice
Adhering to proper mechanical leverage rules is critical to preserve the sensitive timing components inside standard needle bar frameworks.
- Needle Bar Engagement: Insert the flat-blade tip squarely into the single horizontal slot of the lower needle bar collar screw. Turn clockwise to lock the needle shank securely against its alignment pin; do not over-torque to prevent stripping fine metric threads.
- Illumination Extraction: Slide the open cylindrical tail-end of the tool handle over the exposed glass tip of the machine's internal light bulb. Push gently upward to engage the internal compression spring, then twist counter-clockwise to release the bayonet pins from the socket block.
- Alternate Application: Functions as the dedicated adjustment driver for securing fine seam guides and gauge bars directly onto modern specialized presser assemblies, such as the premium Bernina #97D dual-feed patchwork foot.
Cross-Platform System Compatibility
This OEM maintenance accessory is built to original factory dimensions and is guaranteed to serve as an exact operational match across the following series:
Bernina Classic 1000 & 1100 Electronic Series:
- Model 1020 / 1030 / 1031 Frameworks
- Model 1080 / 1090 High-Function Class
- Model 1100 / 1120 / 1130 Electronic Suites
Bernina Heritage 1200, 1500 & 1600 Series:
- Model 1230 / 1260 Quilter's Editions
- Model 1530 Computerized System
- Model 1600 / 1630 High-Velocity Platforms
Authority Troubleshooting Note: If your customer is operating newer-generation machines utilizing modern Torx-head (#T10) security fasteners on their needle clamps, this legacy flat-blade profile will not work. Always verify if the machine's clamp housing requires a standard straight-slot drive or the modern star-shaped Torx configuration before recommending this tool.
